ASTR9 Three-Pinned Arch

ASTR9 Three-Pinned Arch

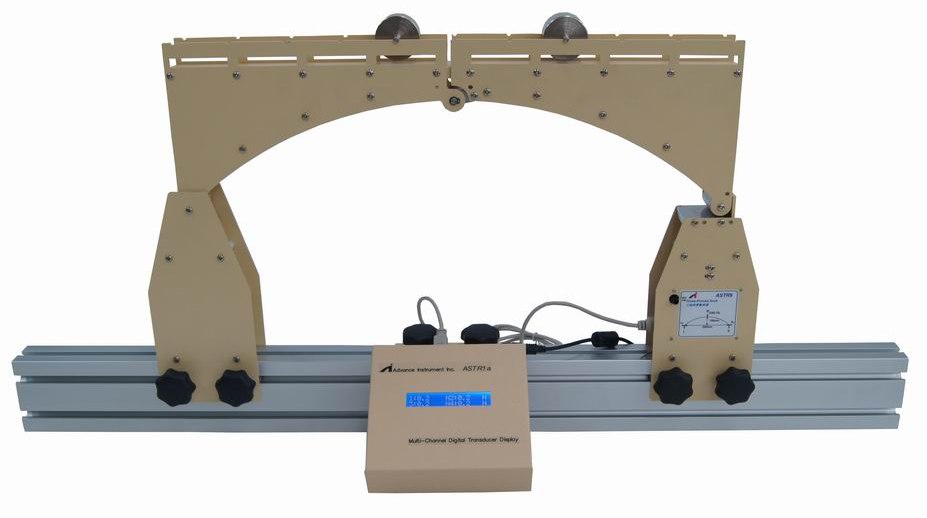

The experiment hardware fits onto a Multi Structures Test Frame (ASTR1, available separately). Students apply various loads at set positions along the top of a simple ‘determinate’ threepinned arched structure. They can also apply a uniformly distributed load.

The structure has a pivot at one end and at the crown. The arch rolls against a load cell at the opposite end. The load cell connects to a Multi-Channel Digital Transducer Display (ASTR1a, available separately) to measure and display the thrust reaction. The equipment includes a lead to connect the load cell to a Multi-Channel Digital Transducer Display (ASTR1 a).


● For studying the characteristics of a threepinned arch under various load conditions
● High-quality structures teaching module for students of mechanical, civil and structural engineering
● Allows safe and practical experiments into three-pinned arches
● Realistic and verifiable experiment results
● Optional AII’s Structures Software package for extra ‘virtual’ experiments that simulate and confirm the results from your hardware and allow extended experiments
● Optional ASTR2000 unit with AII’s Structures Software package for automatic data acquisition and virtual experiments
● One of many interchangeable experiment modules from AII’s modern, flexible and costeffective Structures teaching system
● Ideal for classroom demonstrations, or students working in pairs or small groups
