Description

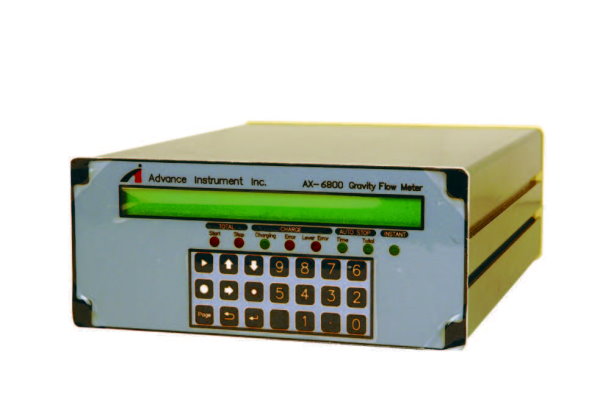

The AX-6800 Digital Flow Meter may be combined with any of the GB Series Flow Detectors
to enable measurement and display of liquid mass flow.

Measurement data includes instantaneous flow, integrated flow, interval averaged flow
( over set time intervals ), and, using an engine rpm signal, it is possible to measure
fuel consumed for each engine stroke.

A remote box is provided for controlling test start & stop and printout of measurement results.

Additionally, a IEEE-488 interface is available as an option ( IEEE-488 option installed ).
Features
● Direct Measurement Of Mass Flow And Mass Consumed
● High Accuracy Flow Measurements Over A Wide Meansurement Range
● Overflow And Low Liquid Level Warning Functions
● IEEE-488 Computer Interface Option Available
● No Need For Temperature Or Specific Gravity Compensation
● Variety of preprogrammed measurement functions including:
Instantaneous Flow, Integrated Flow, And Interval Averaged Flow
